● Dynamic Peak Power Tracking: Featuring advanced peak power tracking technology, the system precisely locks the wind turbine’s optimal power point in real time. It adapts perfectly to fluctuating, unstable wind speeds, dynamically adjusting parameters to minimize power loss, maximize wind energy capture, and boost overall power generation yield and energy efficiency.
● High-Speed ARM Control Chip: Built with a premium industrial ARM microcontroller, the system delivers fast data processing and millisecond-level real-time feedback. It eliminates operational delays and failures, supports long-term stable operation in harsh outdoor environments, and ensures superior system reliability and anti-interference capability.

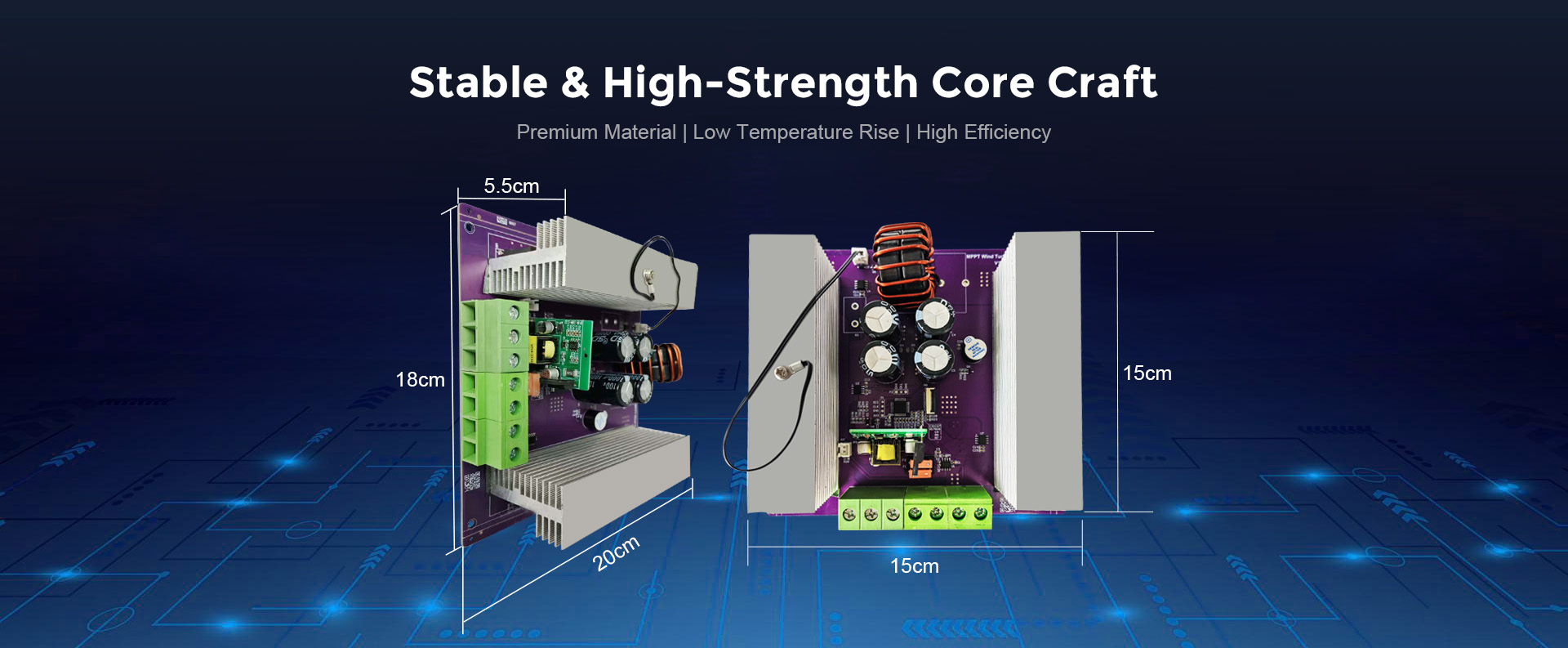

● High-Efficiency Step-Up Circuit Design: The optimized built-in DC step-up circuit reduces heat loss and energy attenuation during conversion. It upgrades overall power conversion efficiency, stabilizes wind power transmission, and effectively cuts down energy waste in power generation and battery charging processes.
● All-Round Real-Time Data Observation: It enables full real-time monitoring of core metrics, including wind input data, battery voltage, charging current, fan speed, MPPT status, DC output and system braking information. This full-dimensional monitoring helps users grasp system conditions and conduct timely maintenance and risk control.
● Flexible Battery Voltage Adaptation: The system auto-recognizes 12V/24V/48V standard battery packs and supports manual voltage adjustment. It flexibly adapts to customized non-standard battery combinations to meet diverse household and industrial wind power matching demands.

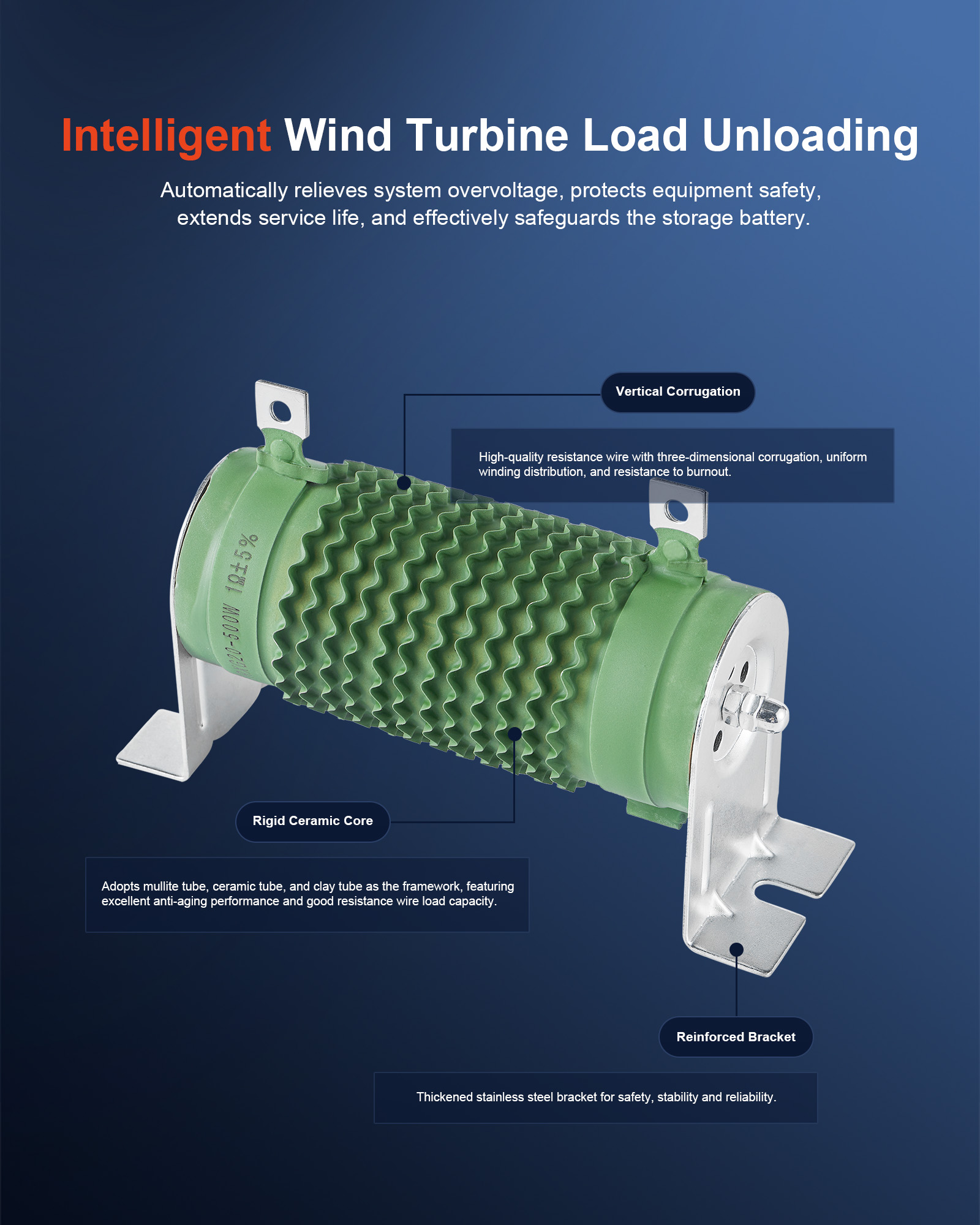

● Built-in Active Overwind Protection: With integrated brake resistance, it automatically triggers load braking under overwind conditions or full battery status. This prevents overvoltage damage and turbine failures, fully protecting the wind power unit and extending equipment service life.

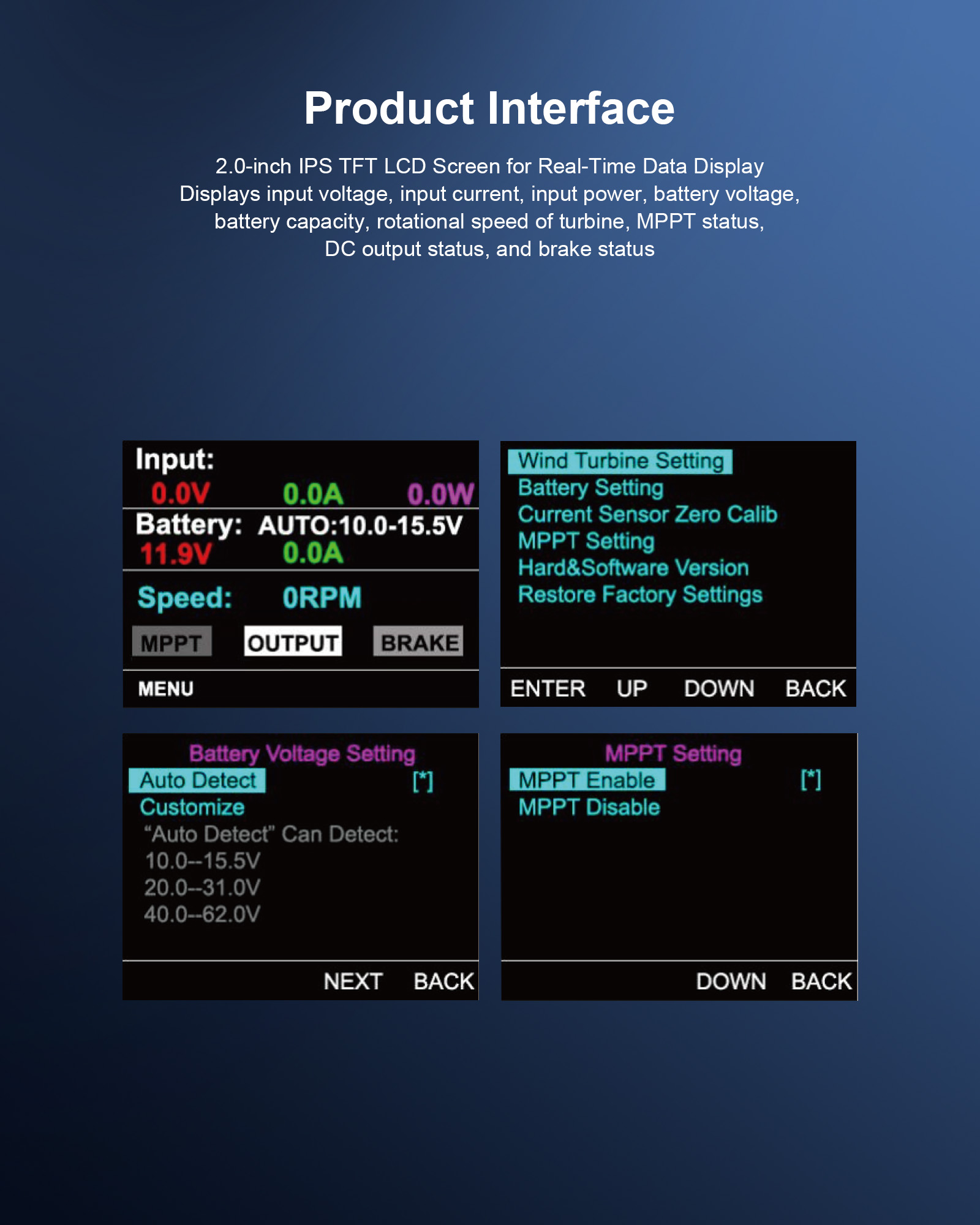

● Intuitive Visual Display Screen: Equipped with a 2-inch IPS TFT color screen, it clearly displays all operating indicators and fault prompts. Boasting a wide viewing angle and anti-glare performance, it facilitates on-site data checking and parameter modification for efficient human-computer interaction.
