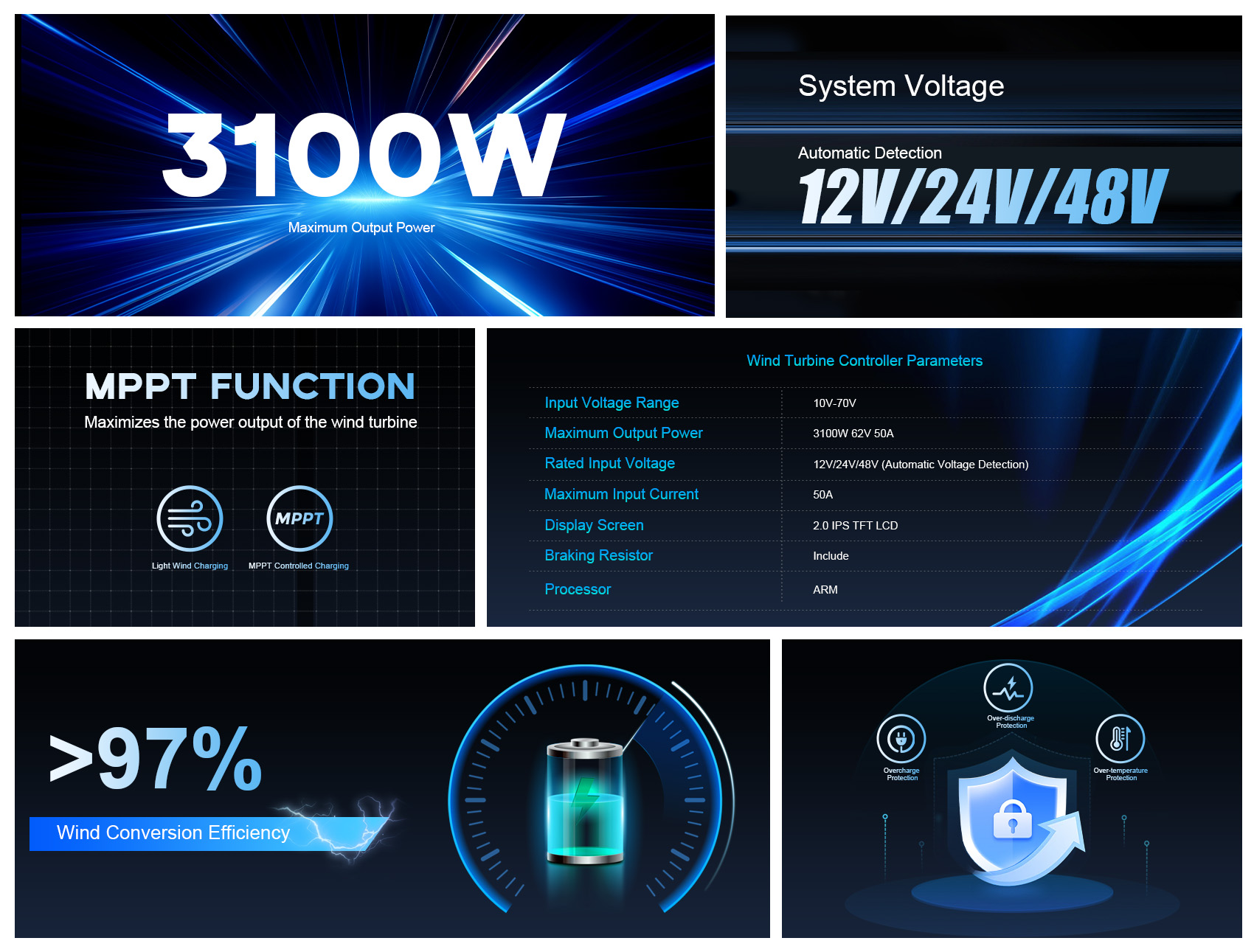

● MPPT Function
Adopts advanced MPPT algorithm to dynamically track the maximum power point, effectively maximize power generation efficiency and power output of wind turbines under variable wind speed conditions.
● ARM Processor
Equipped with high-performance ARM core processor, delivering rapid data computation, stable operation response and long-term dependable working performance for the whole control system.

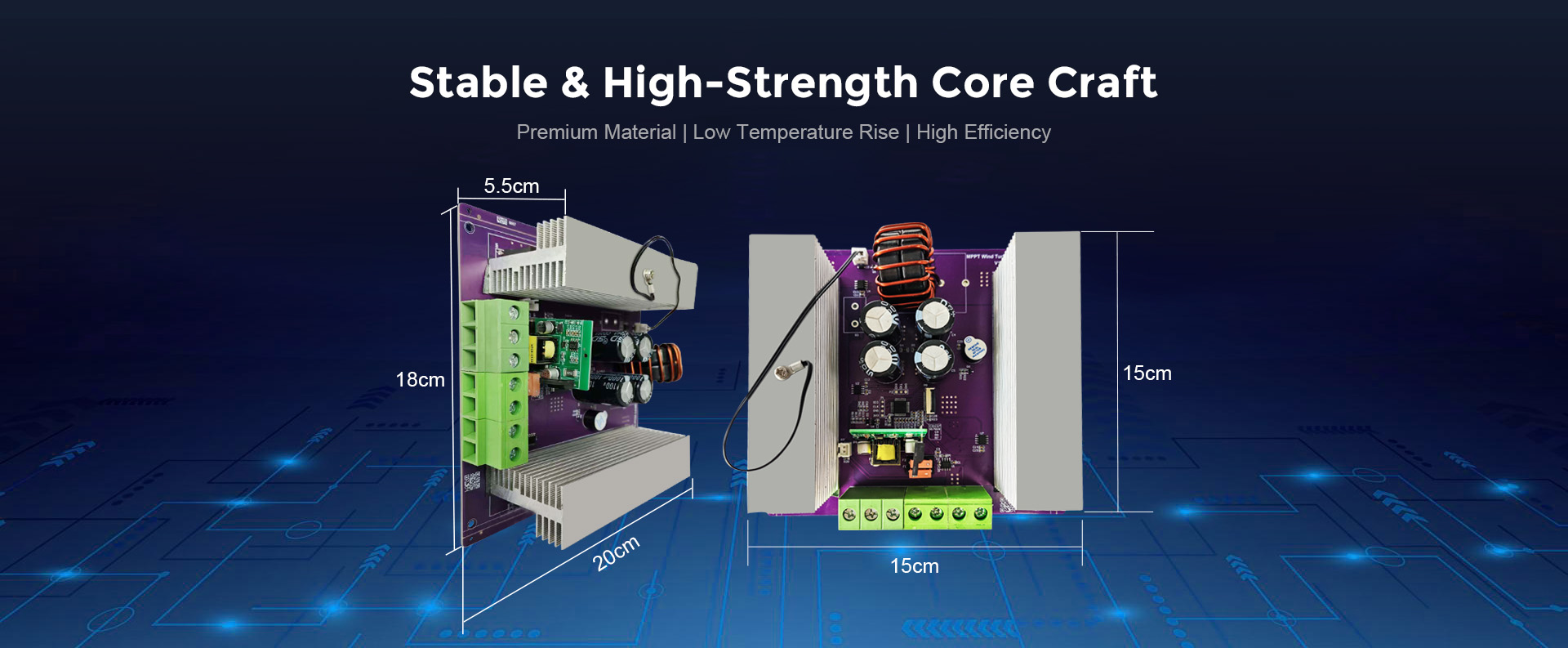

● Boost Converter Structure
Built-in professional boost converter topology, performs high-efficiency DC voltage step-up conversion to minimize power loss and realize superior overall electric power conversion efficiency.
● Comprehensive Monitoring Function
Supports full-range operational data monitoring and real-time readout, covering input voltage, input current, input power, battery terminal voltage, battery charge/discharge current, wind turbine rotation speed, working status of MPPT module, DC output working condition as well as system brake state.
● Automatic Battery Voltage Identification
Features intelligent automatic battery bank voltage identification, compatible with standard 12V/24V/48V storage battery systems; meanwhile supports manual configuration to set customized voltage parameters for non-standard battery packs.
● Active Brake Protection System
Integrated built-in braking resistor module to activate automatic load braking, safeguarding the whole wind power system against overvoltage damage under extreme high wind velocity or full-battery cut-off scenarios.

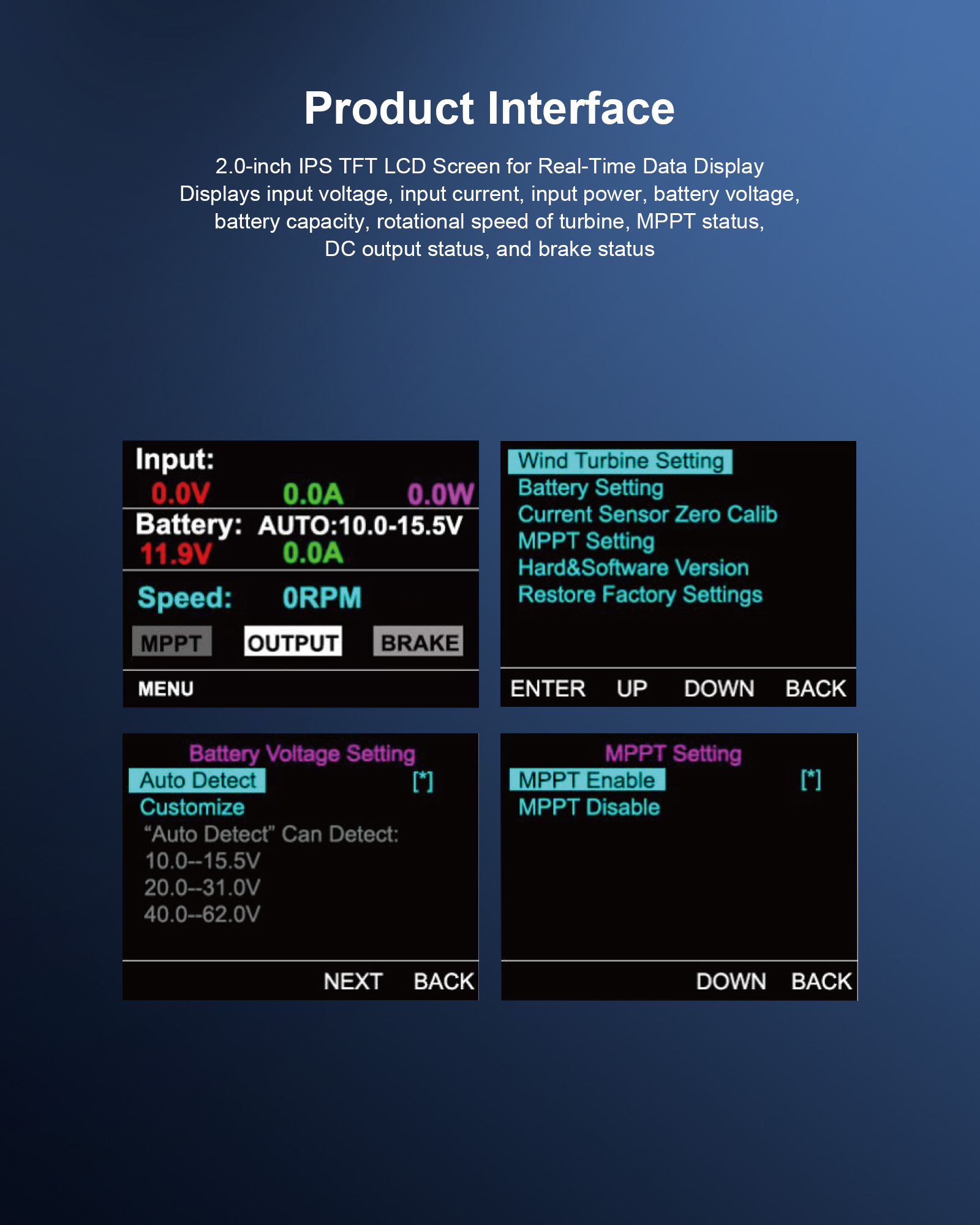

● Human-Machine User Interface
Comes with a 2.0-inch high-definition IPS TFT LCD display, enabling intuitive real-time visualization of all operational parameters and working status for convenient onsite checking and setup.
