Maximize Your Renewable Energy Harvest with Our Dual MPPT Wind-Solar Hybrid Controller

⚡ Unmatched Dual MPPT Performance Real-time tracking of wind and solar maximum power points unlocks >97% conversion efficiency, turning every breeze and ray of sunlight into usable power for your projects.

🔌 Universal System Compatibility No more complex setup hassles! The controller automatically identifies 12V/24V/48V system voltages and works with 12-150V batteries and all mainstream PV panels, fitting seamlessly into diverse hybrid energy systems.

🛡️ All-Round Protection for Long-Term Reliability Advanced smart protection against overcharging, overdischarg, and overheating eliminates risks to your batteries and equipment, ensuring stable, worry-free operation for years.

Products Overview

Product Specifications

Wind Turbine Controller Technical Parameters
Input Voltage Range	10V-70V
Maximum Output Power	0.3kW-3kW / Optional
Rated Input Voltage	12V/24V/48V（Automatic Detection）
Maximum Input Current	50A / Current range: Optional within 50A

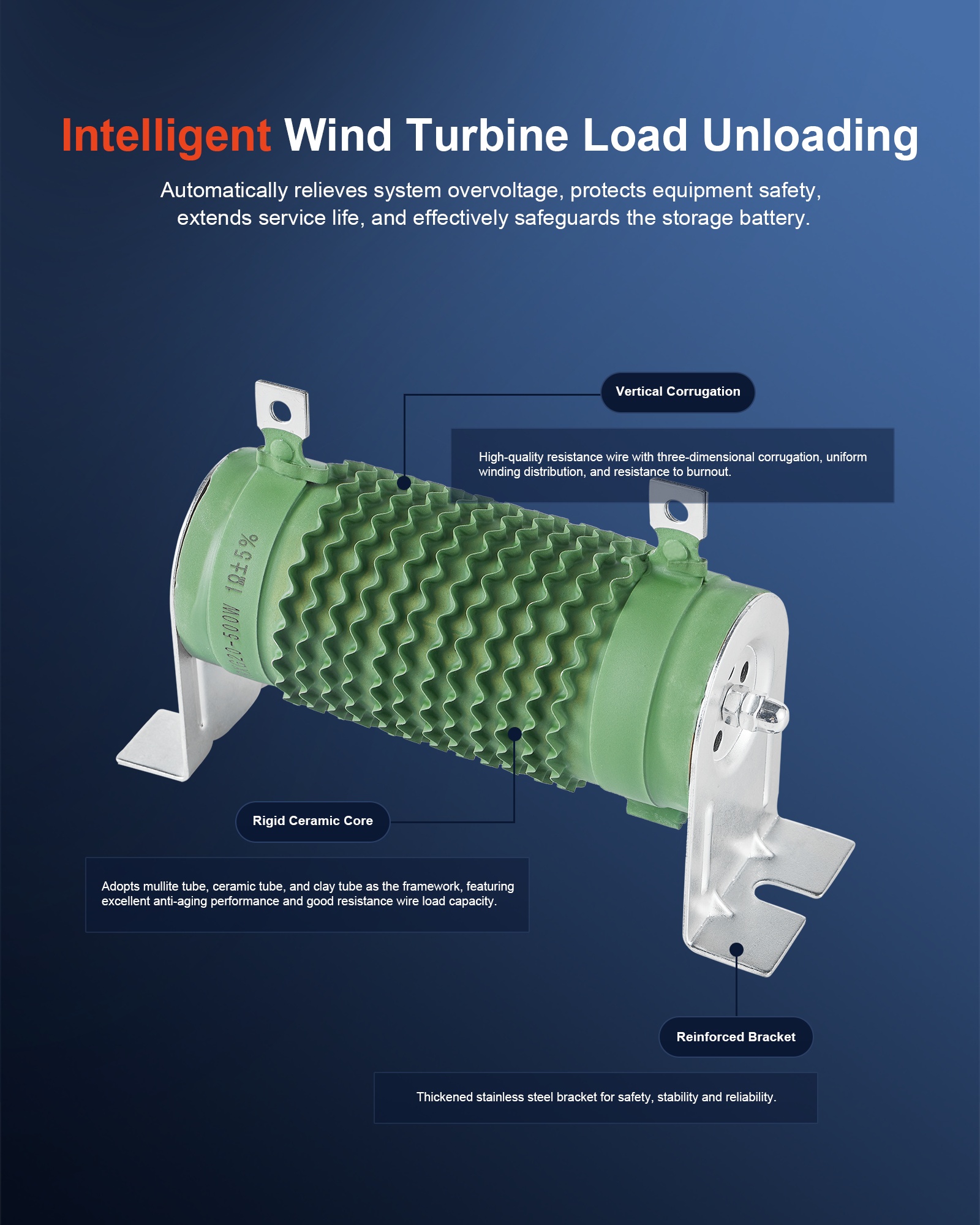

Braking Resistor	Include
Processor	ARM

Photovoltaic Controller Technical Specifications
Charging Mode	MPPT Automatic Maximum Power Point Tracking
Charging Method	MPPT, Float Charge
System Type	Auto Voltage Recognition for DC12V/24V/48V
System Recognition Voltage	12V-DC9V-DC15V、24V-DC18V-DC29V、48V-DC40V-DC60V
Soft Start Time	≤1s
Overall Efficiency	≥98.1%
Dynamic Response Recovery Time	100us
PV Module Utilization Rate	≥99%
MPPT Operating Voltage & Range	12 System PV Open-Circuit Input Voltage: DC20V-80V 24 System PV Open-Circuit Input Voltage: DC37V-105V 48 System PV Open-Circuit Input Voltage: DC72V-160V
Maximum PV Input Power	12 System 400W/480W/600W/720W 24 System 720W/960W/1200W/1440W 48 System 1200W/1700W/2200W/2800W
Selectable Battery Types (Default: Gel Battery)	Sealed Lead-Acid (SLA) Battery, Flooded Lead-Acid Battery, Gel Battery, Nickel-Cadmium (NiCd) Battery (Customizable for other battery types with user-defined charging voltages)
Constant Voltage (CV)	Refer to the Charging Voltage Parameter Table for battery types
Float Voltage
Overcharge Protection Voltage	15V/30V/60V
Input Reverse Current Protection	Include
Maximum Output Current	60A
Over-temperature Protection Point	75℃
Storage Temperature	-40℃ ~ +75℃
Atmospheric Pressure	70~106kPa
Fan Deactivation Temperature	<35℃
Fan Activation Temperature	>40℃
Electromagnetic Compatibility (EMC)	EN61000，EN55022，EN55024
Cooling Method	Passive Cooling
Operating Temperature	-20℃ ~ +55℃
Humidity	0~90% RH (Non-Condensing)
Altitude	0~4000m

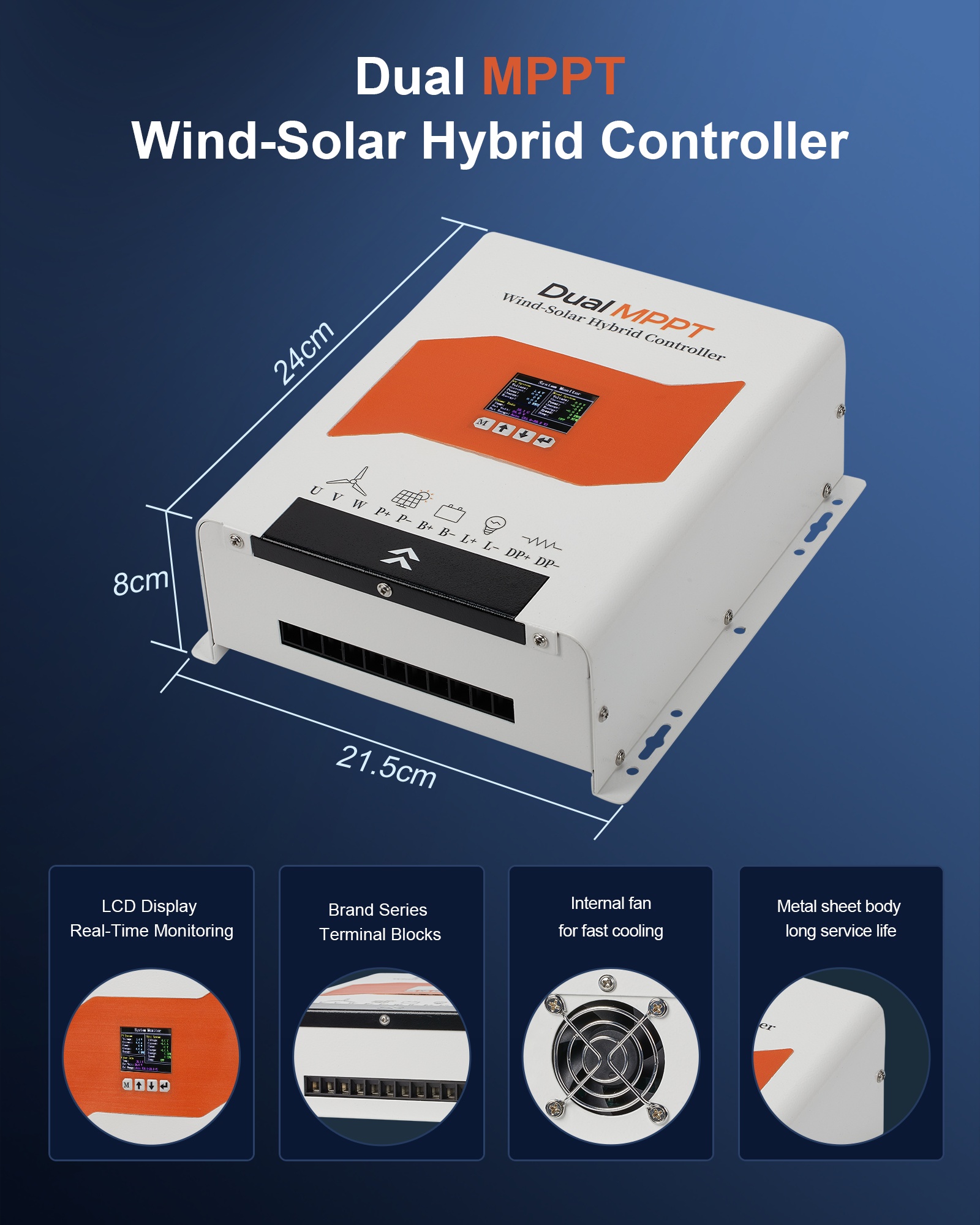

Package dimensions	34.51814cm (Dimensions differ slightly across power ratings. Contact your supplier for specifics.)
Gross Weight	3.8 kg (Weight varies by model. Consult supplier for details.)
