MPPT Solar Charge Controller, Model: DH-SC-01

● High-efficiency MPPT Tracking: Adopts real-time maximum power point tracking technology to instantly lock the optimal power point of solar modules, achieving a peak conversion efficiency exceeding 97% for superior power utilization.

● Wide Voltage Compatibility Design: Flexibly compatible with 12V to 150V various battery banks and adaptable to a full range of different specifications of photovoltaic panels for diversified system collocation.

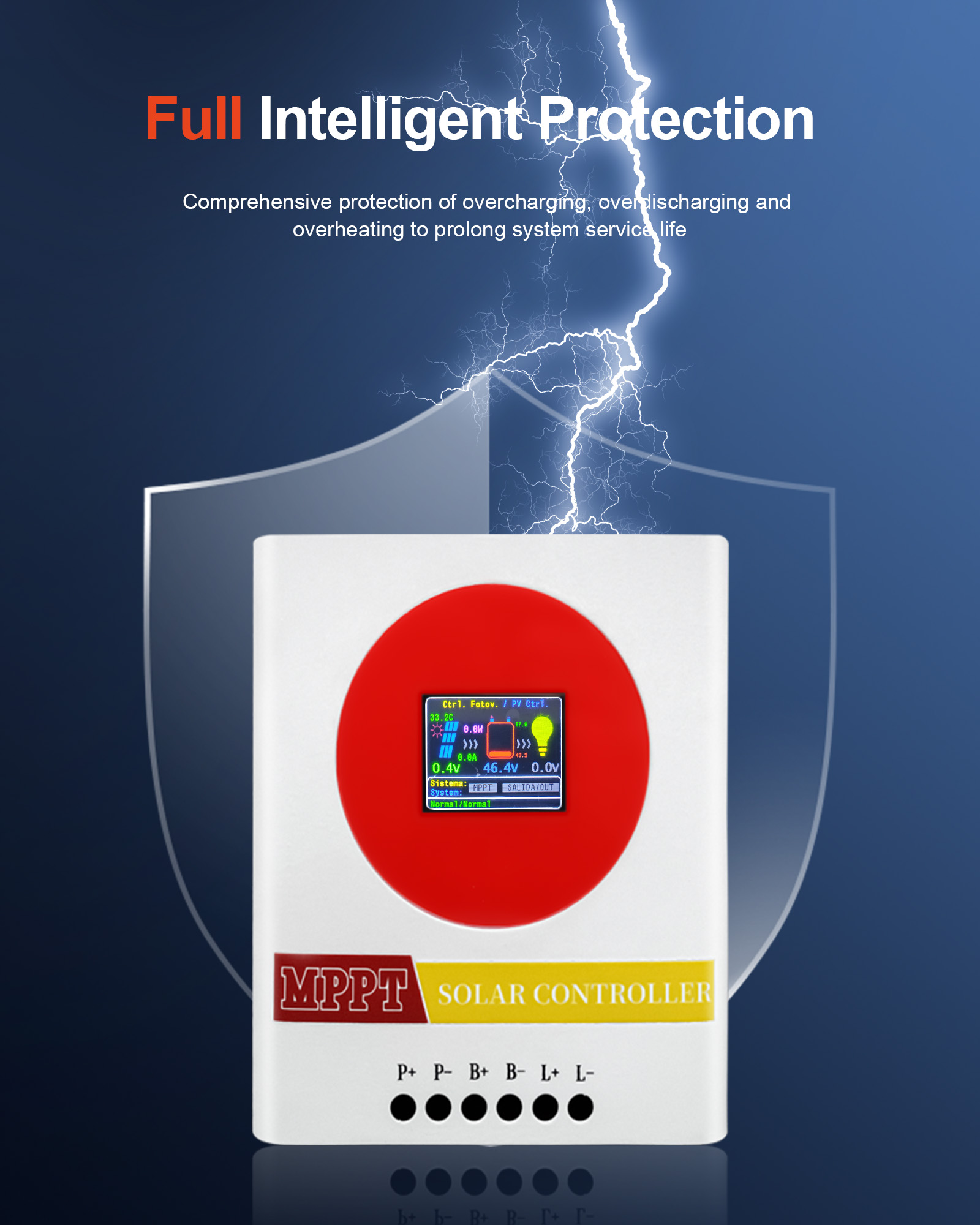

● All-round Intelligent Protection: Comprehensive multi-protection against overcharging, overdischarging and overheating effectively avoids component damage and significantly prolongs the whole solar power system’s service lifespan.

Products Overview

MPPT Solar Charge Controller, Model DH-SC-01 Detail 01

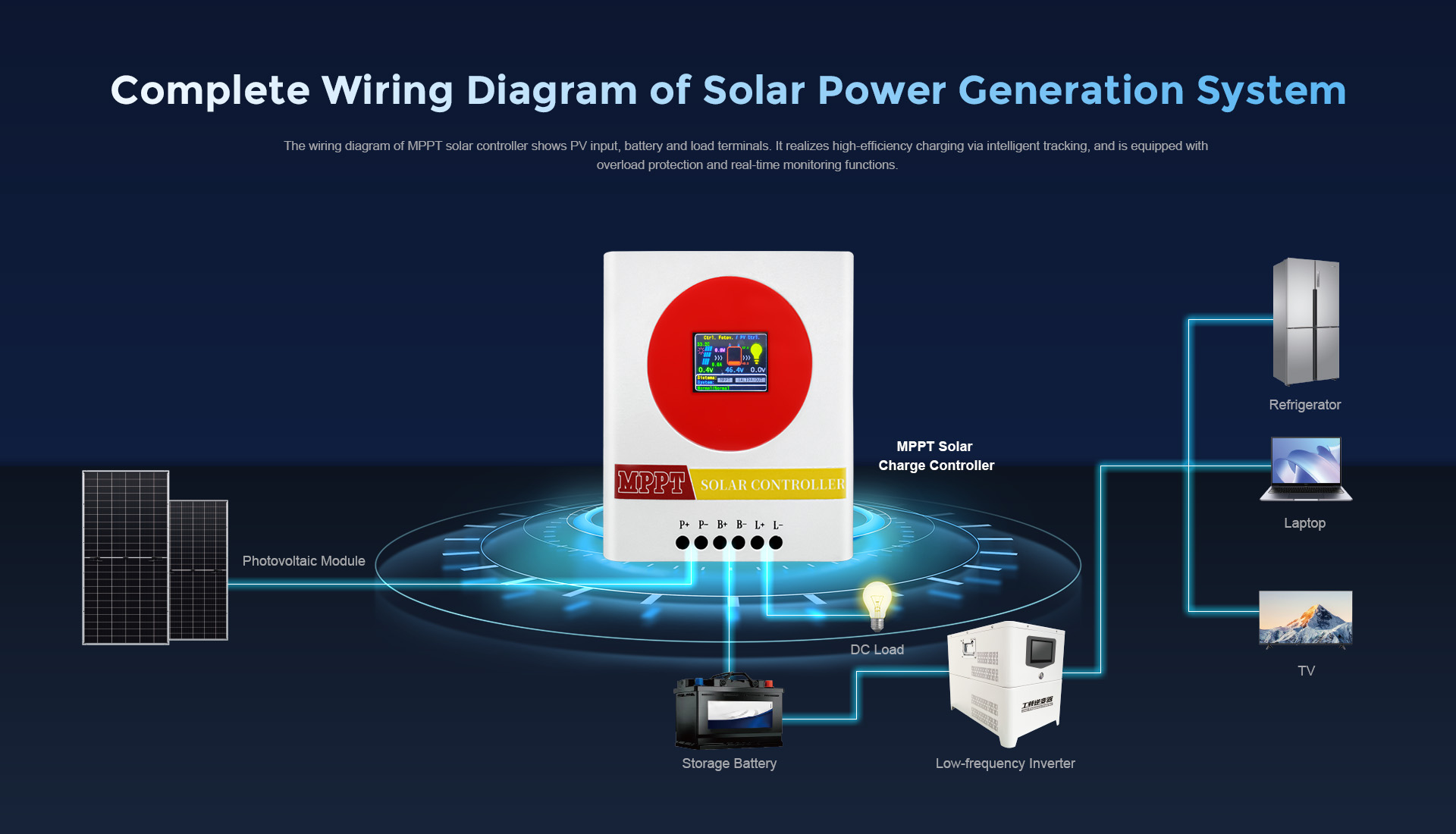

MPPT Solar Charge Controller, Model DH-SC-01 Detail 02

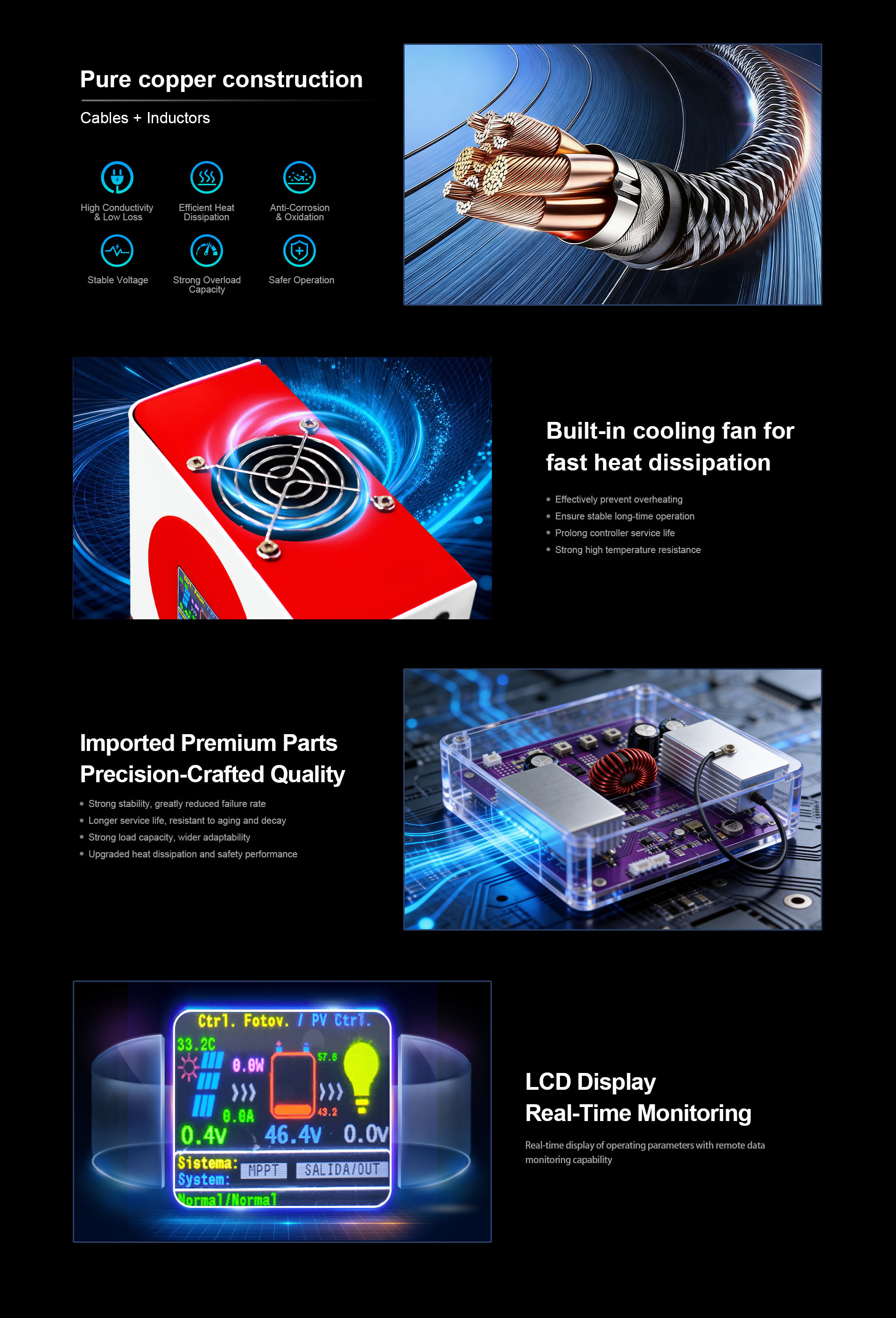

MPPT Solar Charge Controller, Model DH-SC-01 Detail 03

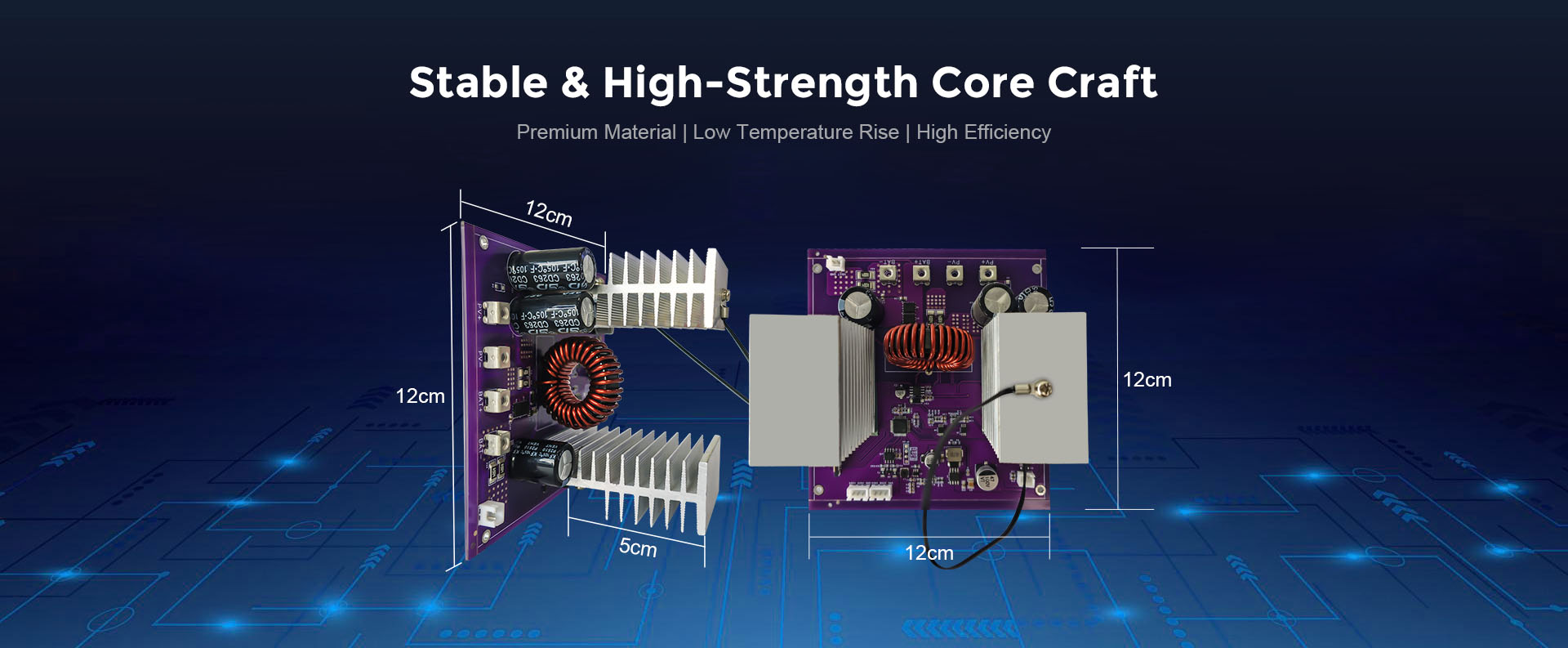

MPPT Solar Charge Controller, Model DH-SC-01 Detail 04

Product Specifications

Model Number
Material	Sheet Metal	Color	white
Charging Mode	MPPT Automatic Maximum Power Point Tracking
Charging Method	MPPT, Float Charge
System Type	Auto Voltage Recognition for DC12V/24V/48V
System Recognition Voltage	12V-DC9V~DC15V、24V-DC18V~DC29V、48V-DC40V~DC60V
Soft Start Time	≤1S	Dynamic Response Recovery Time	100us
Overall Efficiency	≥98.1%	PV Module Utilization Rate	≥99%

Input Characteristics
MPPT Operating Voltage & Range	DC20V-80V/12V System: PV Open-Circuit Input Voltage DC20V-80V
	DC37V-105V/24V System: PV Open-Circuit Input Voltage DC37V-105V
	DC72V-160V/48V System: PV Open-Circuit Input Voltage DC72V-160V

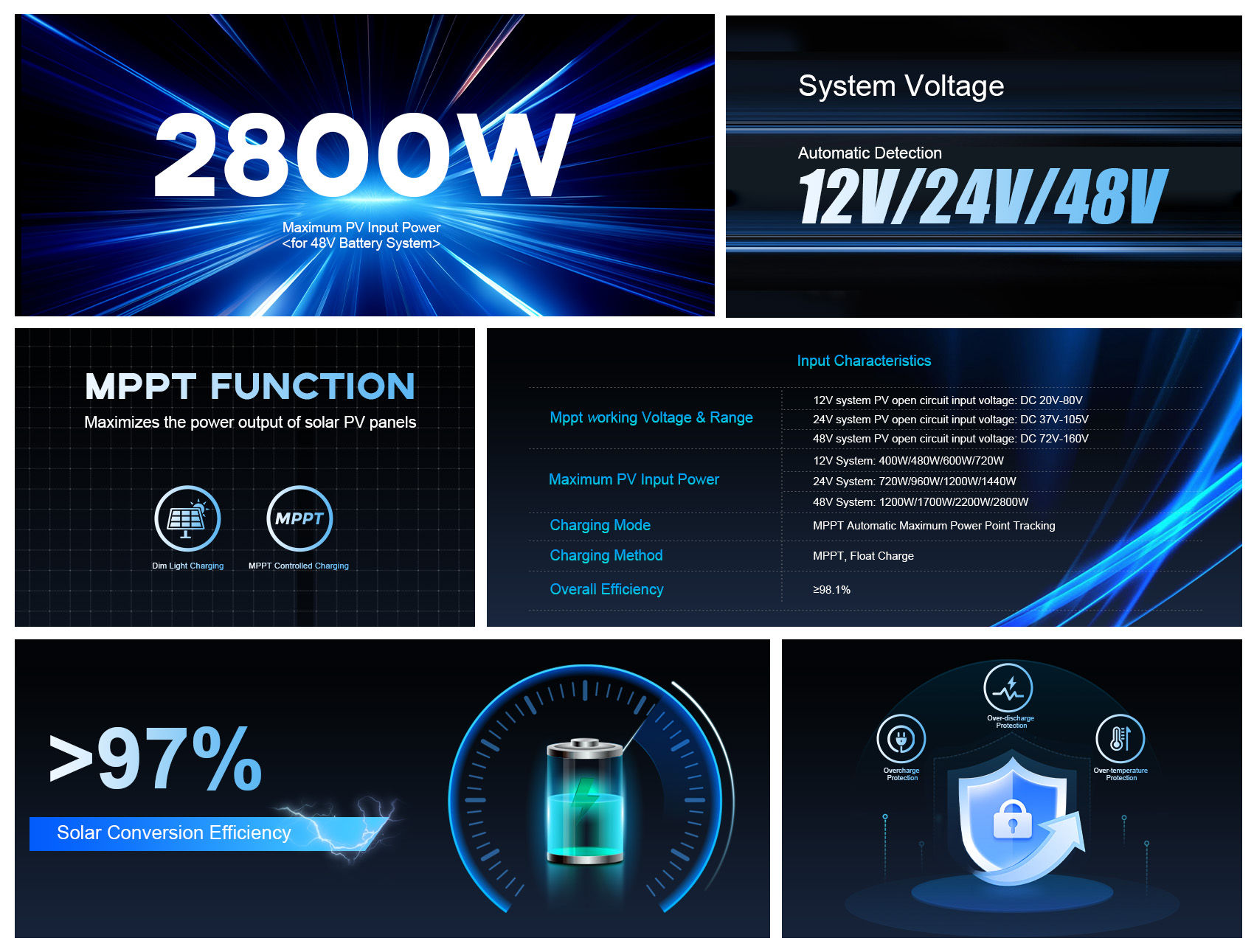

Maximum PV Input Power	12V System: 400W/480W/600W/720W
	24V System: 720W/960W/1200W/1440W
	48V System: 1200W/1700W/2200W/2800W
Maximum Input Voltage (VOC)	DC190V

Output Characteristics

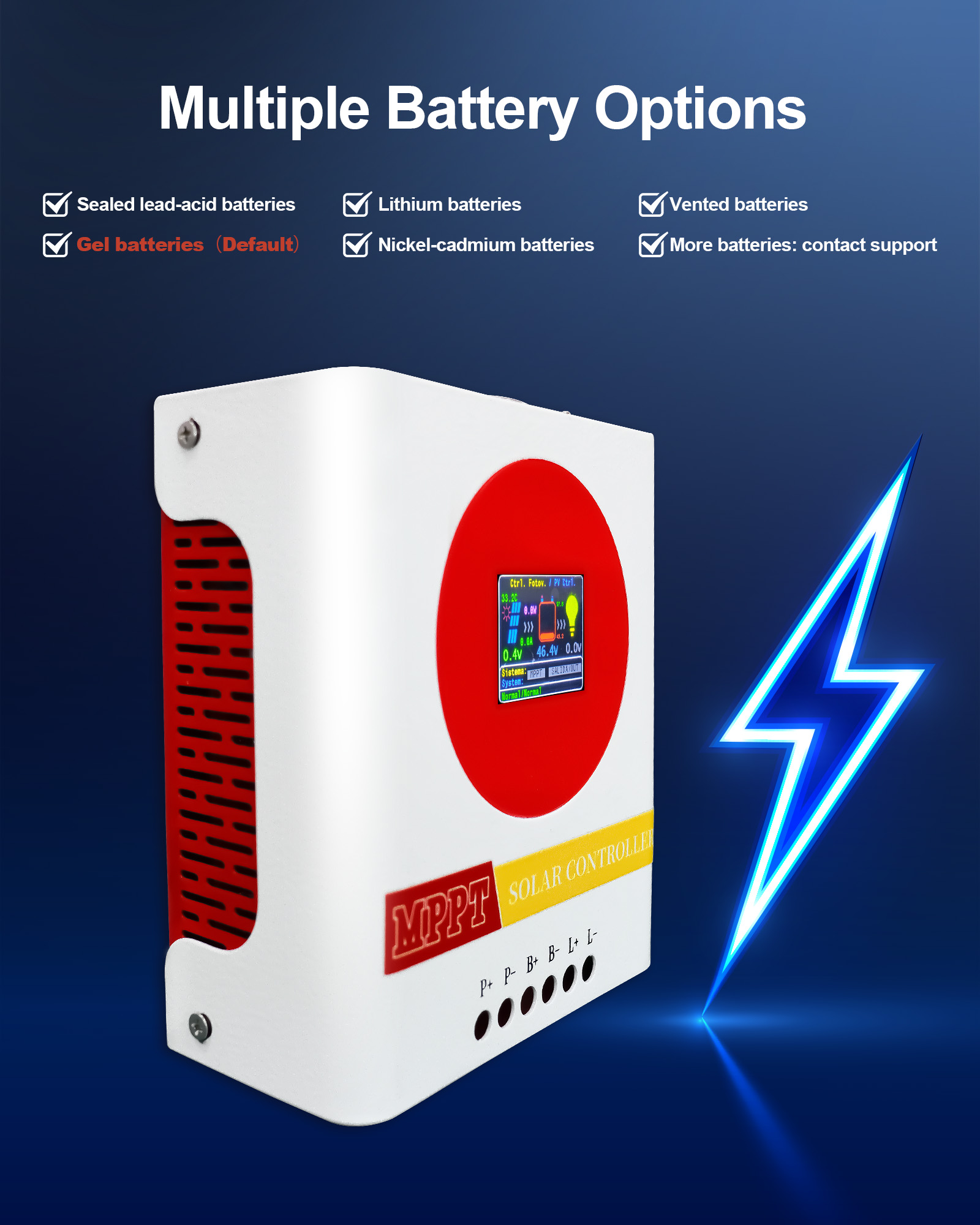

Selectable Battery Types (Default: Gel Battery)	Sealed lead-acid batteries, lithium batteries, vented batteries, gel batteries, nickel-cadmium batteries (customizable for charging other types of batteries at different voltages)
Constant Voltage (CV)	Refer to the Charging Voltage Parameter Table for battery types.
Float Voltage
Overcharge Protection Voltage	15V/30V/60V	Maximum Output Current	40A

Protection Functions
LCD Display	Input/Output Parameters, Output Power, etc. (See Display Instructions for Details)
Output Overvoltage / Undervoltage Protection	Refer to Output Characteristics
Input Anti-reverse Current Protection	Include	Temperature Protection	75℃
Temperature Rise Protection	Reduce power output when temperature exceeds 70℃; resume normal output when below 55℃
Fan Turn-on Temperature	>40℃	Fan Cut-off Temperature	<35℃

Specifications

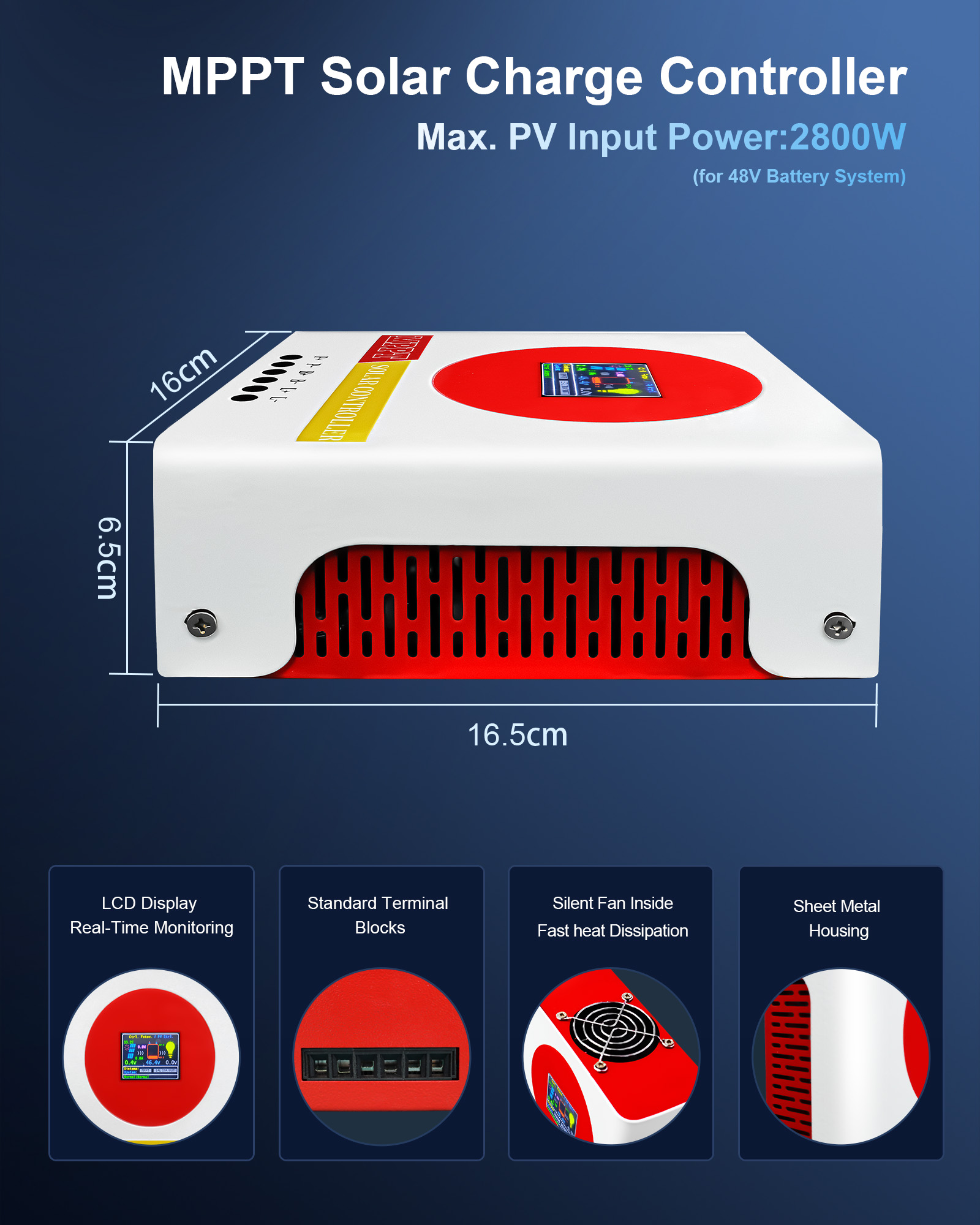

Dimensions (cm)	16.5166.5cm	Net Weight (kg)	1.3kg
Safety Rating	CE、PSE、FCC、EMC，EN60950	Gross Weight (kg)	1.45kg
Mechanical Protection Type	IP21
Electromagnetic Compatibility (EMC)	EN61000，EN55022，EN55024

Other Parameters
Cooling Method	Passive Cooling	Operating Temperature	-20℃ ~ +55℃
Altitude	0~4000m	Atmospheric Pressure	70~106kPa
Humidity	0-90% RH (Non-Condensing)
Components	Imported Materials, Compliant with EU Standards, Standard Industrial Grade Specifications
