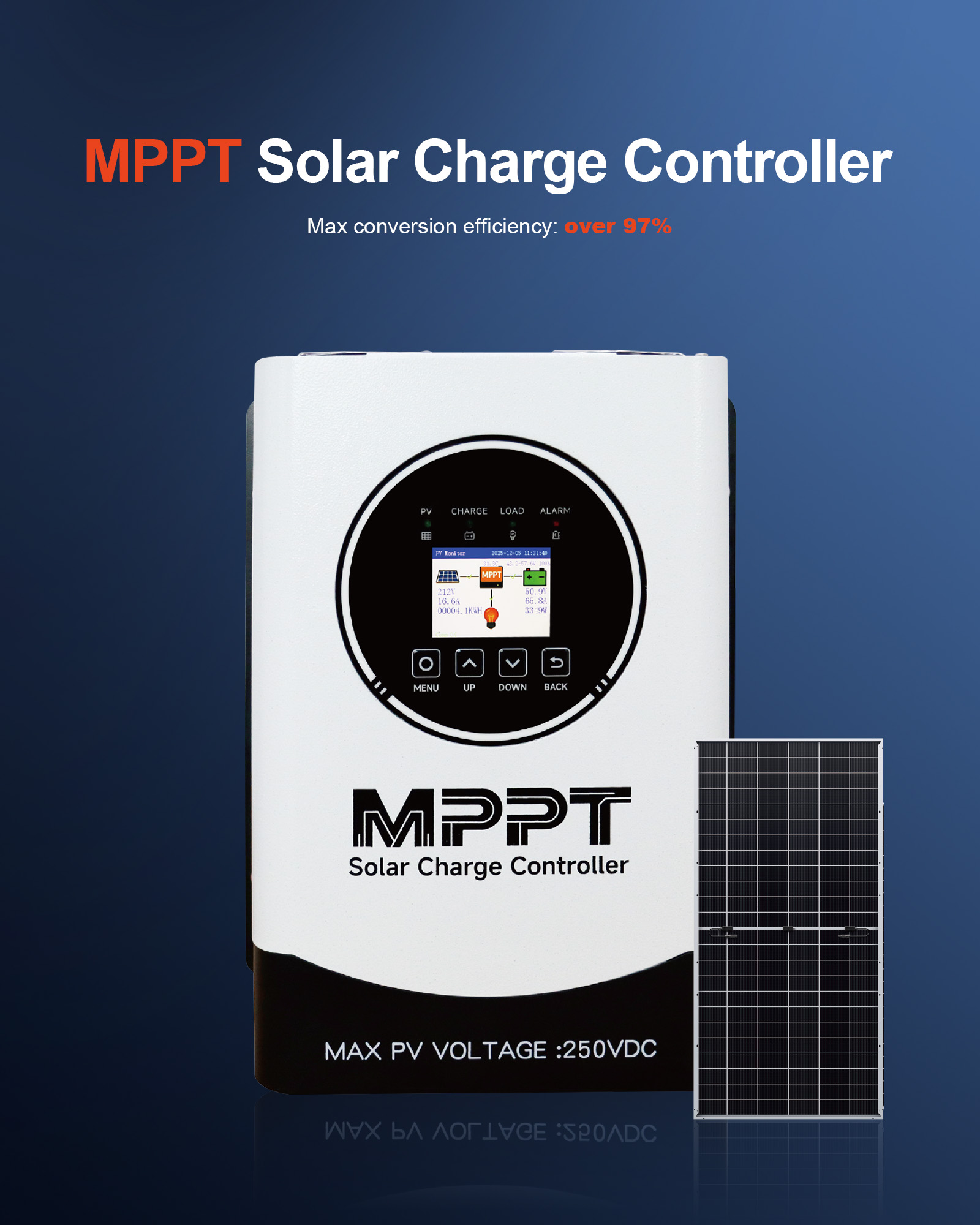

MPPT Solar Charge Controller, Model: DH-SC-02

● Premium Peak Power Harvesting: Leveraging dynamic real-time peak-power computation logic, the unit swiftly locates solar arrays’ ideal working status, delivering peak energy transfer efficiency above 97% and boosting solar harness yield.

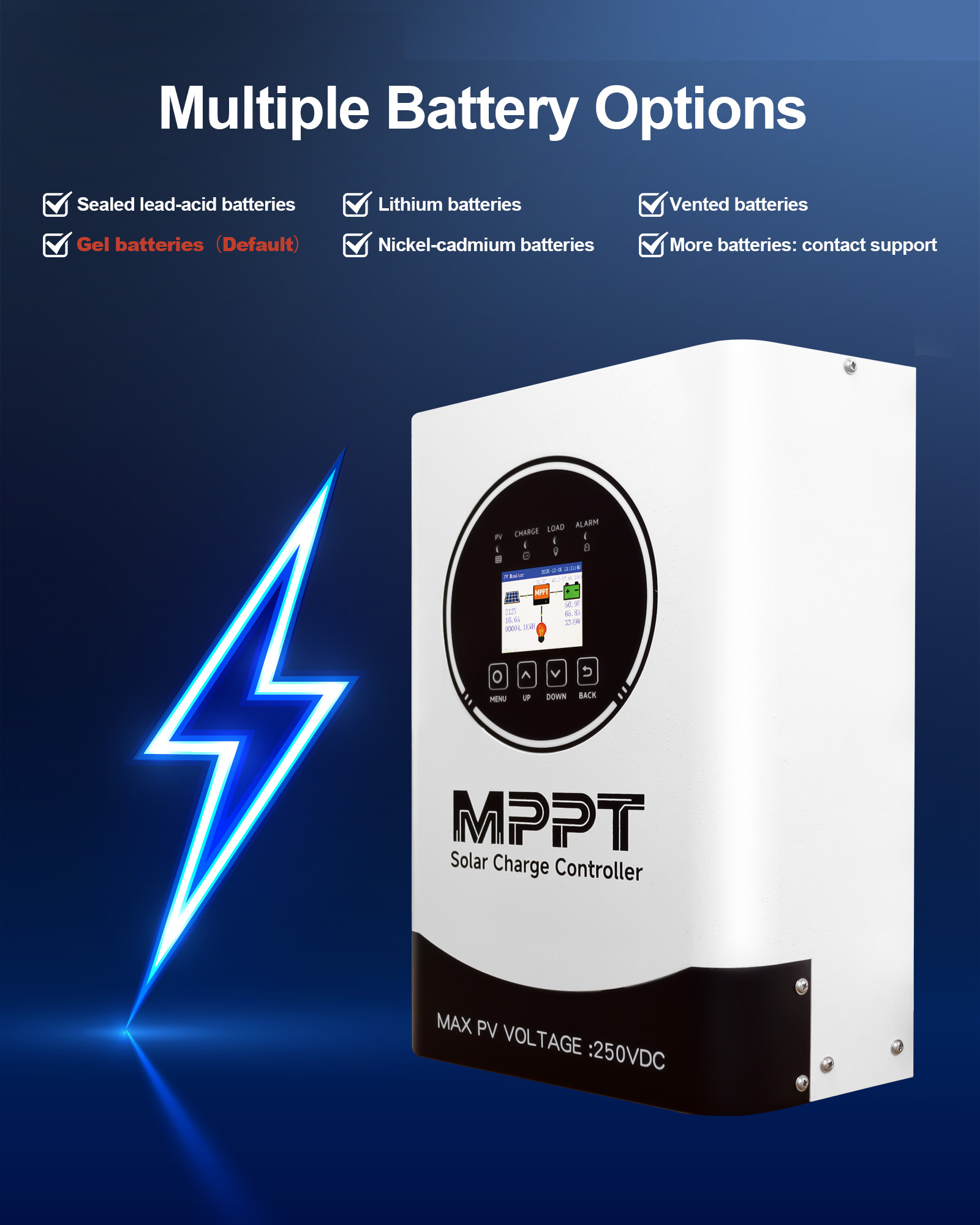

● Broad Battery Voltage Matching: Supports battery packs spanning 12V up to 150V across assorted types, pairing smoothly with assorted PV panels to satisfy customized standalone PV system layouts.

● Full Spectrum Fault Prevention: Integrated multi-tier safety cutoff shields the whole unit from overcharge, deep discharge and excessive heat risks, stopping hardware deterioration and lengthening the complete photovoltaic system’s working cycle.

Products Overview

MPPT Solar Charge Controller, Model DH-SC-02 (1)

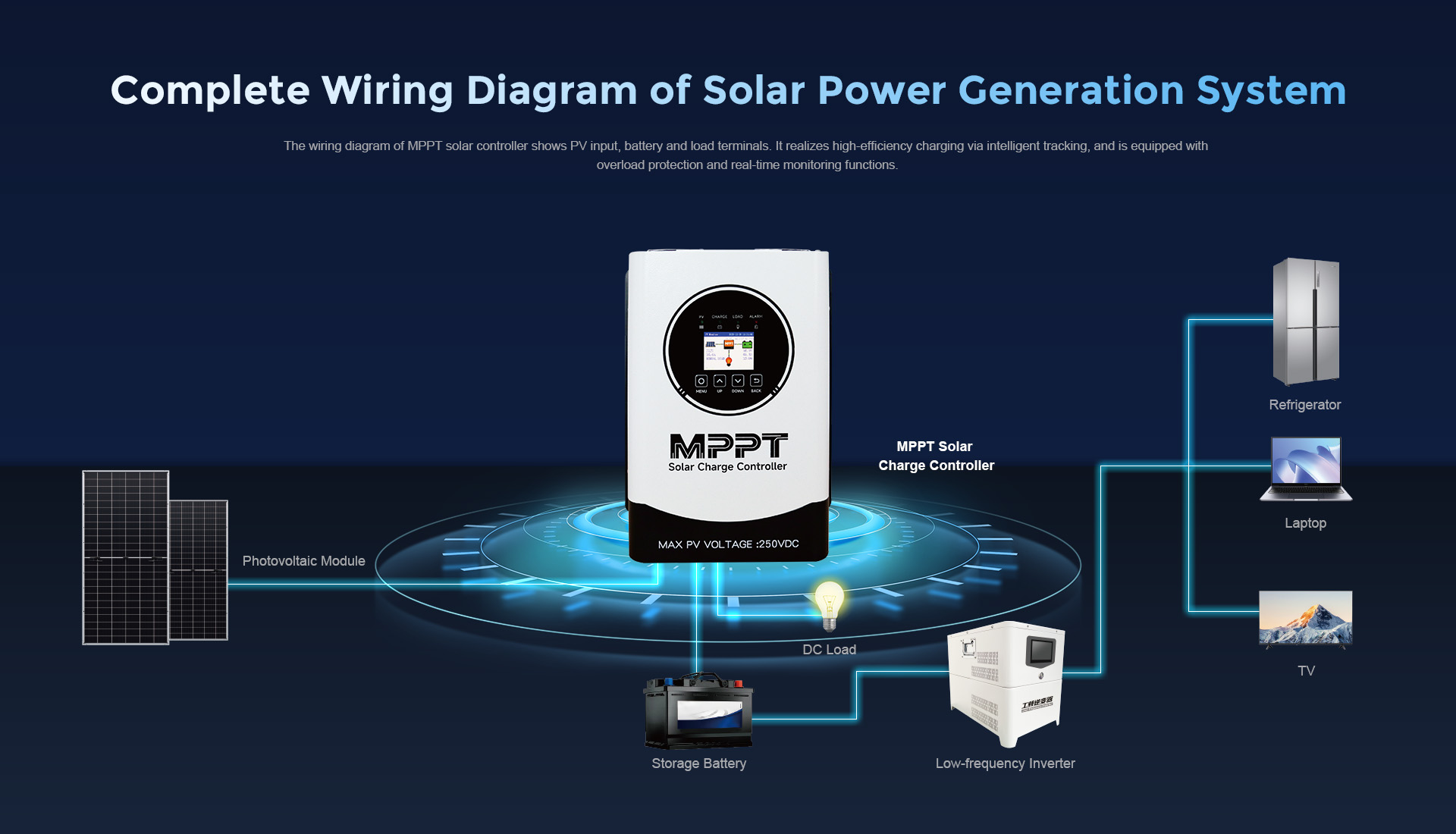

MPPT Solar Charge Controller, Model DH-SC-02 (2)

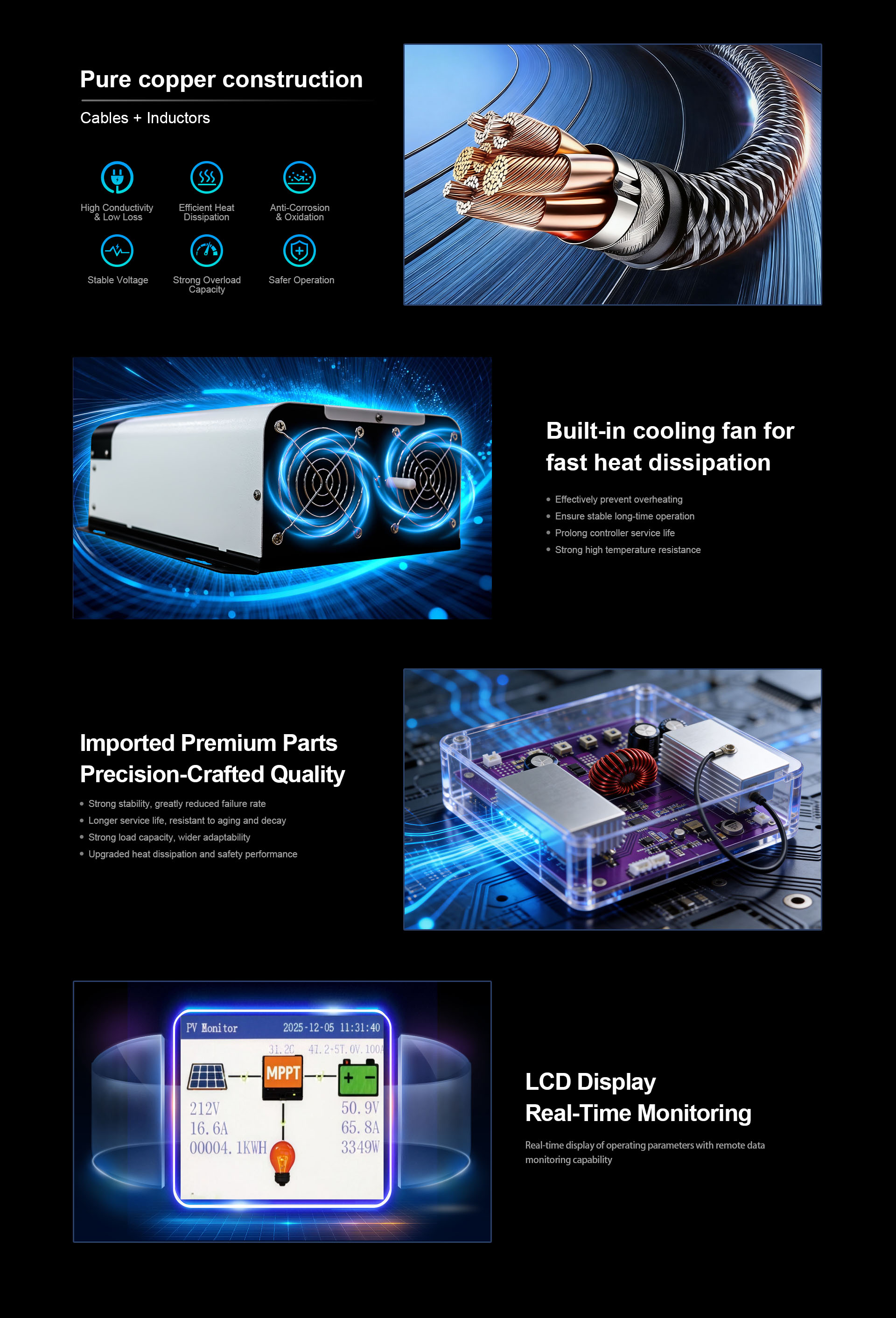

MPPT Solar Charge Controller, Model DH-SC-02 (3)

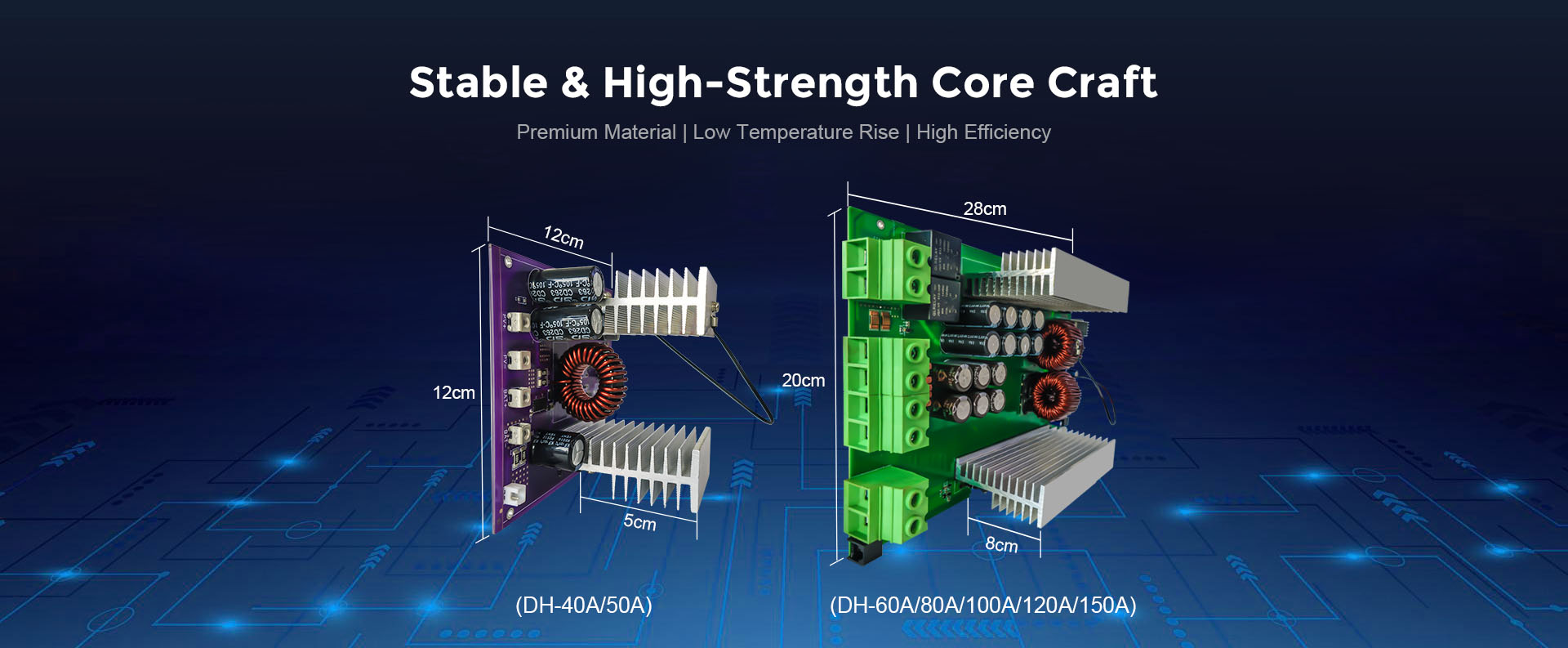

MPPT Solar Charge Controller, Model DH-SC-02 (4)

Product Specifications

Model Number	DH-40A	DH-50A	DH-60A	DH-80A	DH-100A	DH-120A	DH-150A
Adjustable PV Charging Current	0-40A	0-50A	0-60A	0-80A	0-100A	0-120A	0-150A
PV Maximum Open Circuit Input Voltage	250V
PV Minimum Operating Input Voltage	Greater than battery voltage +6V
Charging Mode	MPPT auto-tracks peak power point
Charging Method	MPPT charging stages: Bulk/Absorption/Equalization/Float
PV Minimum Startup Voltage	PV voltage＞battery voltage +4V (enables trickle charging even on cloudy days)
LCD Touch Buttons	LCD displays: Generation data/PV voltage/Battery voltage/Charging current/Output power /System status/Daily generation curve/Monthly generation statistics
LCD Displays	Boot-up logo + Multi-language display interface
Output Voltage	follows battery bank voltage
DC Output Settings	Operation modes: Off / Auto
WIFI IOT (Optional)	Built-in Wi-Fi with APP remote monitoring
485 Communication (Optional)	RS485 communication interface (for system status query and parameter configuration)
Operating Ambient Temperature	10℃ - 46℃
Standby Power Consumption	3W
System Efficiency	99%
Temperature Protection	80℃
Temperature Rise Protection	Automatic power reduction when temperature exceeds 80℃
Protection Functions	Photovoltaic array short-circuit, overvoltage, overcurrent, and reverse connection protection,Battery overcharge, reverse connection protection, and undervoltage protection
Humidity	0-90% (frost-free operation)
Enclosure Protection Rating	IP22
Altitude	0 - 3000m

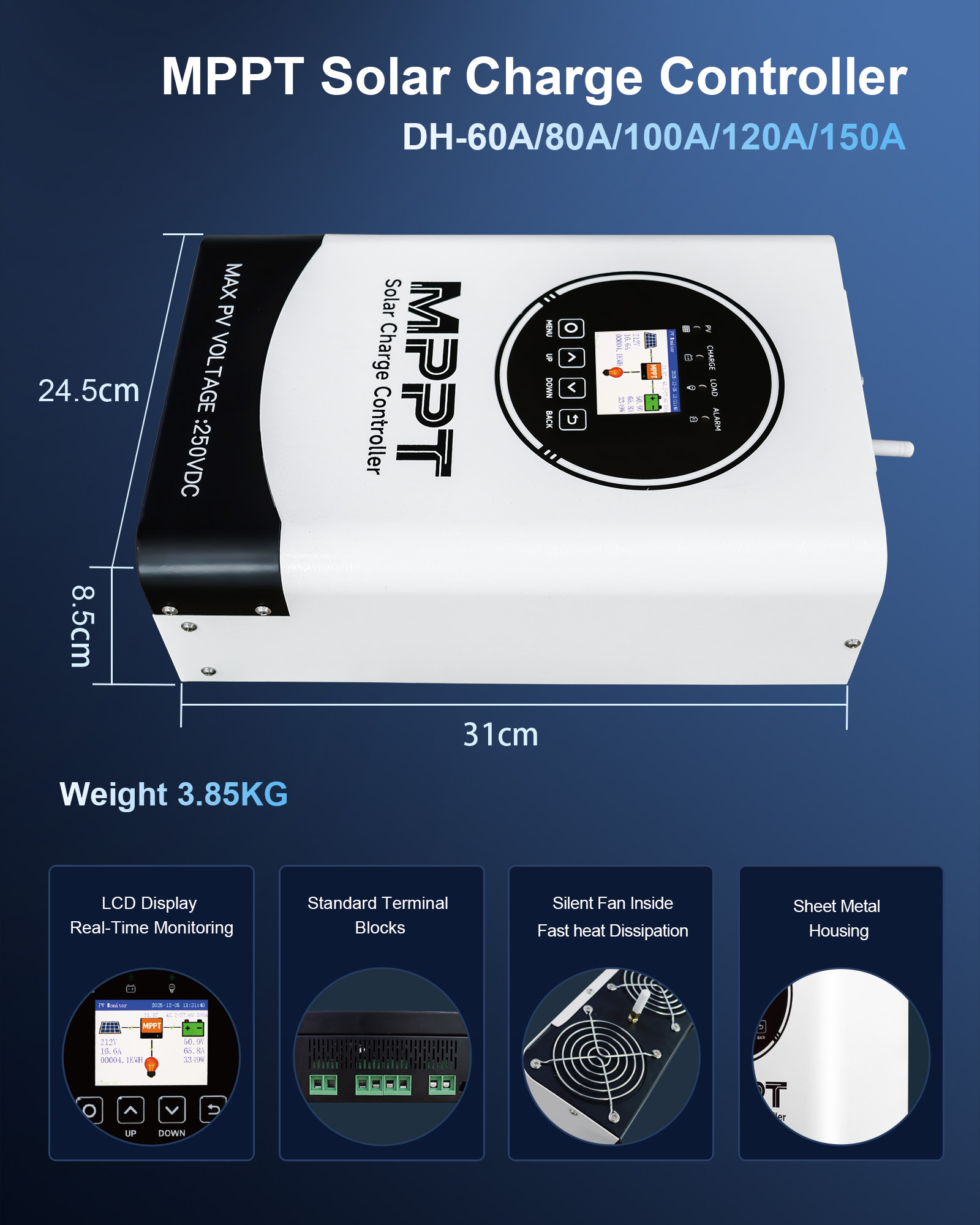

Product Dimensions(cm)	21.520.210cm		3124.58.5cm
Net Weight (kg)	2.4kg		3.85kg
