Key Features
- Integrated Control System

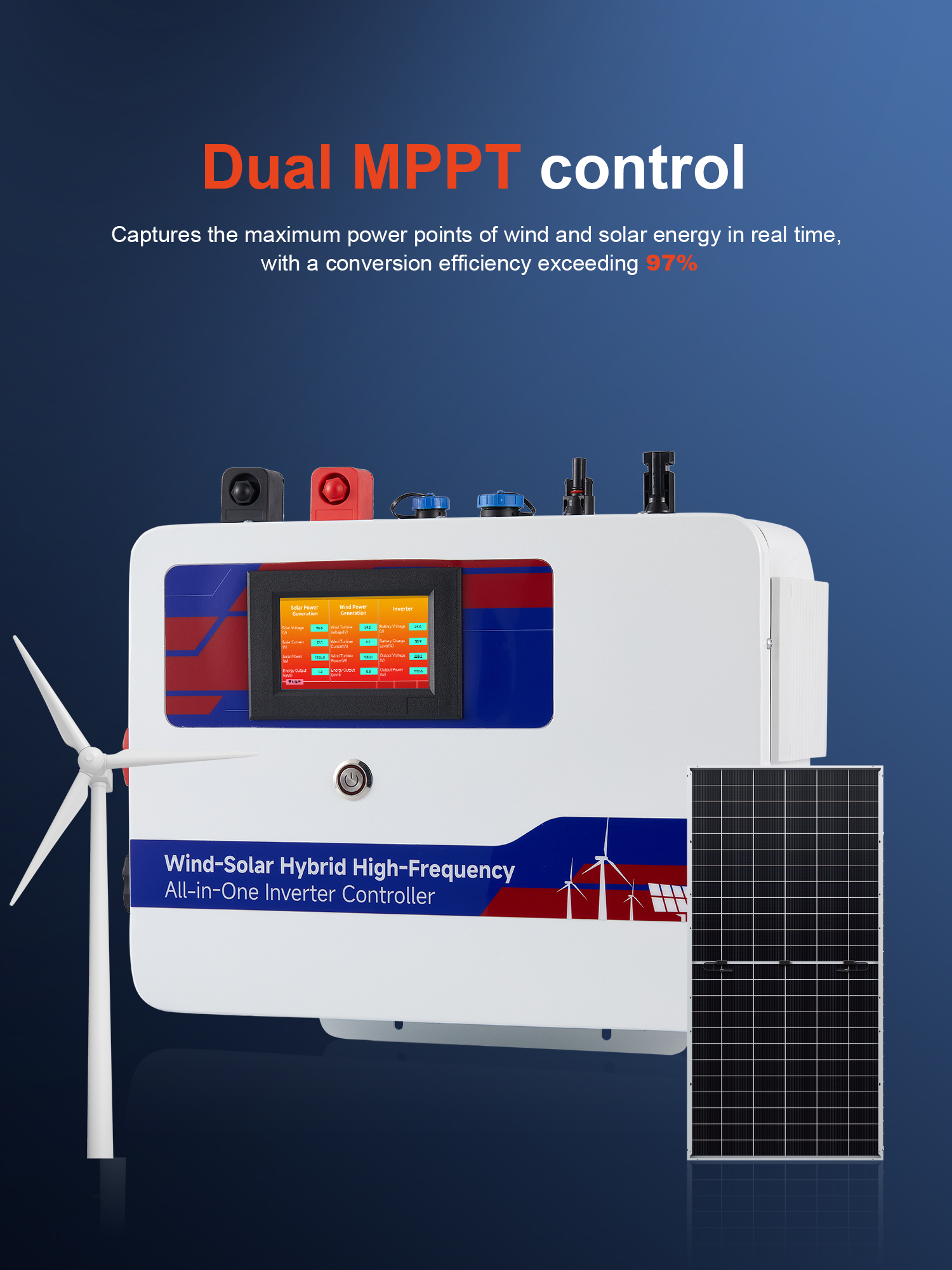

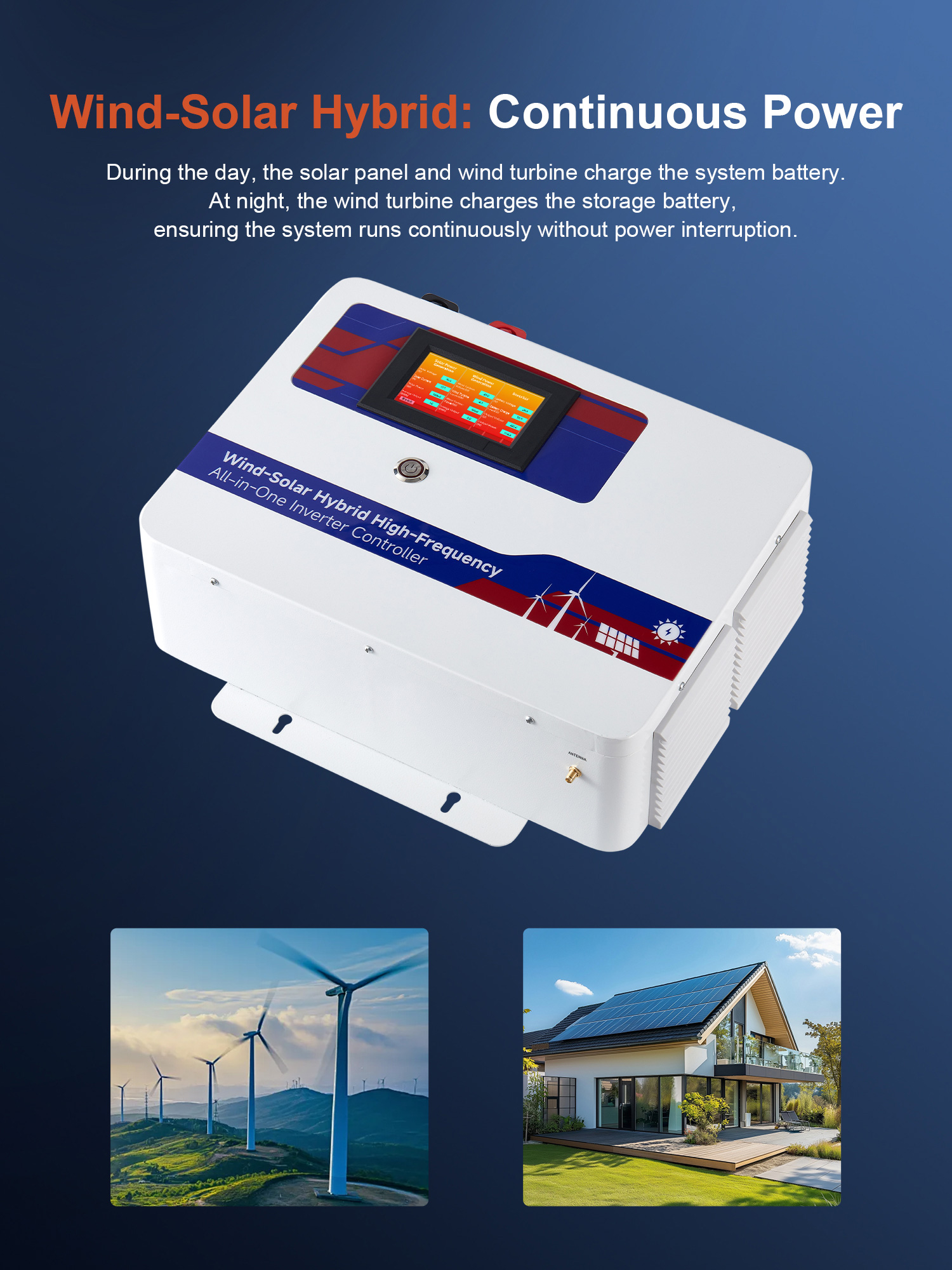

Seamlessly combines wind power generation, photovoltaic power generation and inverter systems. Centralized management simplifies installation, wiring and daily operation, realizing coordinated utilization of wind and solar energy.
- Real-Time Parameter Monitoring
Supports real-time display of comprehensive system data including charging current, voltage, temperature and power. Equipped with intuitive human-machine interface to facilitate convenient system checking and daily management.

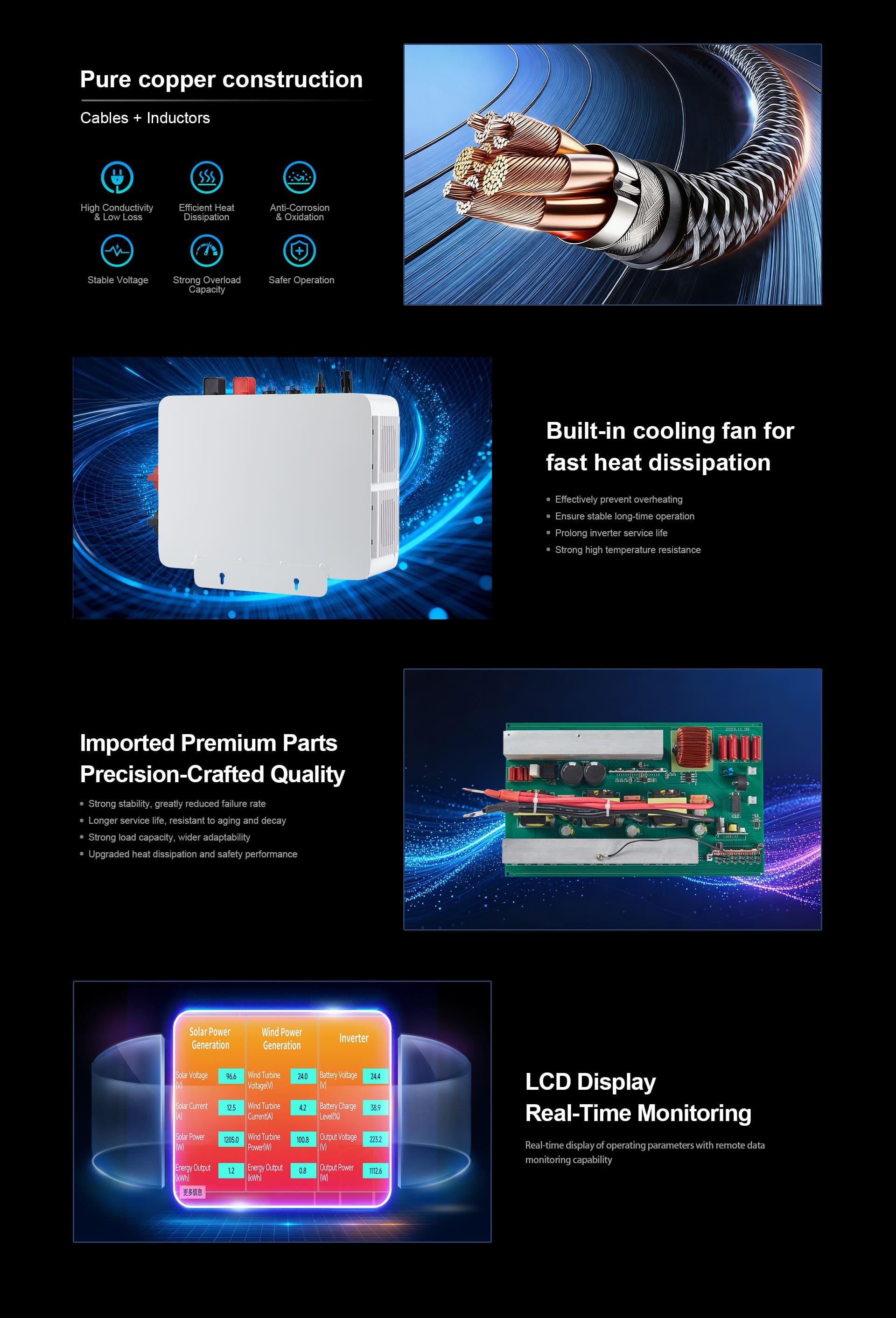

- Intelligent Thermal Management
Built-in intelligent temperature control fan. The fan automatically activates according to temperature and load conditions, effectively lowering internal temperature and guaranteeing stable & safe operation under high temperature or heavy load.
- Flexible System Configuration

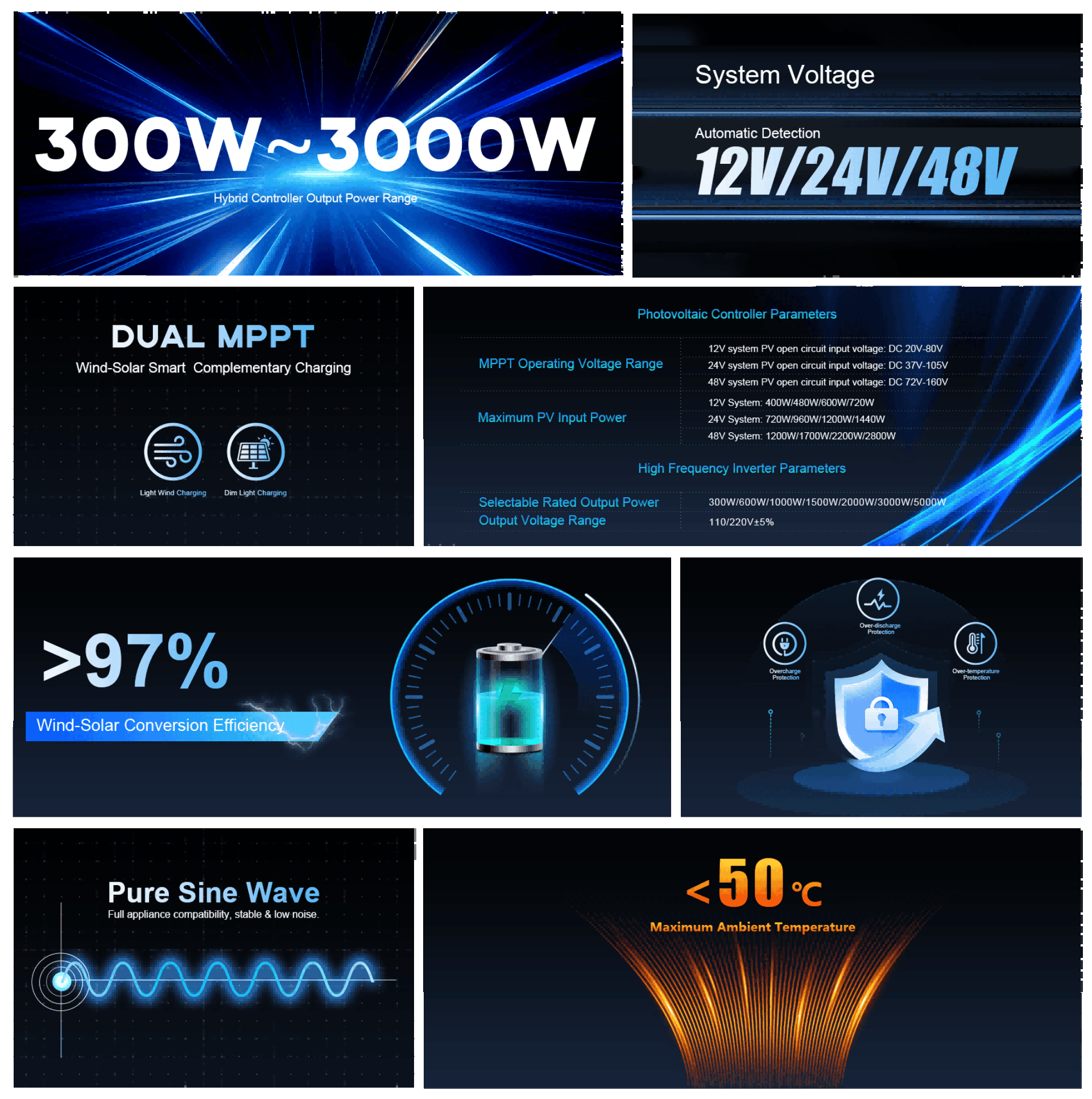

Compatible with automatic 12V/24V/48V battery identification. It adapts to diverse scenarios such as household power supply, remote off-grid power stations and independent renewable energy systems.
- Expandable Communication Function
Optional RS485 peripheral interface supports seamless connection with external equipment. IoT remote monitoring function is available as an option, supporting cloud platform to track running parameters, system status and equipment performance remotely.
- Stable Wind Energy Access
Supports 30–150V wind turbine input, maximum input current 40A, with built-in braking resistor. It delivers reliable over-speed protection for wind turbines and ensures long-term safe operation of the whole hybrid power system.
